Electric Press with Monitoring

Specs

From 90 lbs. to 2,250 lbs.
Throat depth from 5.08″
Working height from 14.17″ to 16.53″

Applications

Full programmable motion controlled and fully monitored press for manual workstation with EC type approved safety technology

Resources

Features

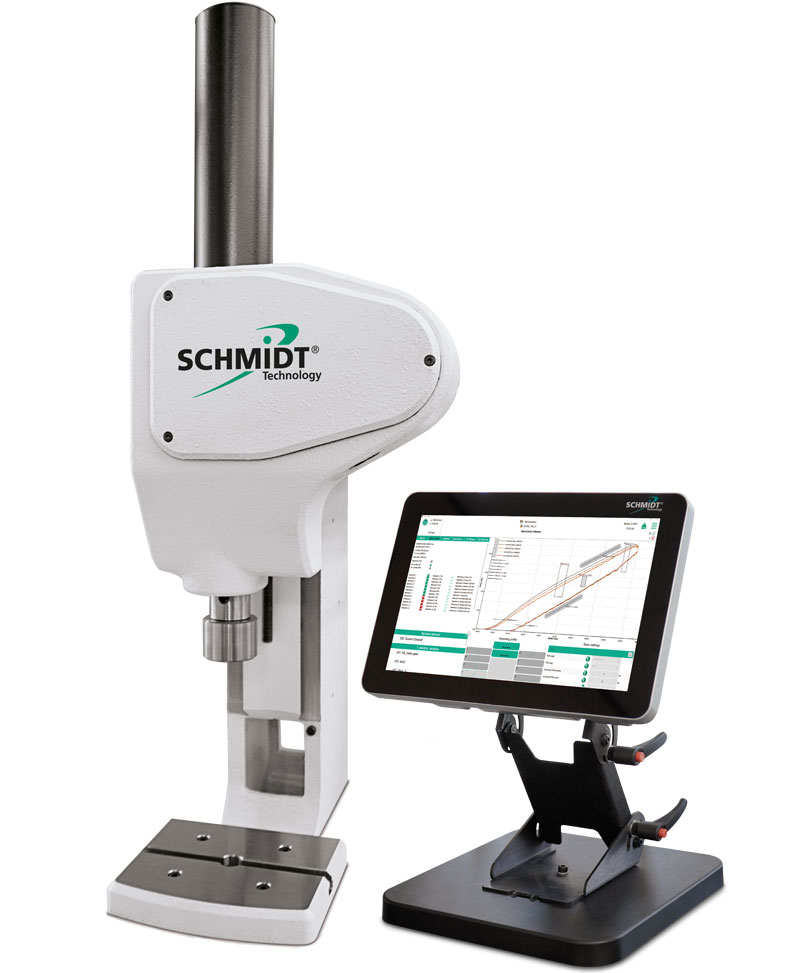

An efficient and reliable assembly process is key to the success of your products in an increasingly competitive market. The all-new SCHMIDT® ElectricPress 34x Series with SCHMIDT® PressControl 700 is your most economical solution, combining a cost effective fully programmable assembly press, using innovative electrical drive technology, with closed loop position and force control to provide flexibility and precision to even the most complex assembly tasks. The system also uses integrated sensor technology to provide precise process monitoring, ensuring quality control on every part.

SCHMIDT®’s state-of-the-art assembly technology monitors and controls the entire manufacturing process rather than individual assembly steps. The proprietary SCHMIDT® DataBase software maps the process data of all individual assembly steps into a data bank, including historic data. CAN-bus technology communication compatible with all established field CAN-bus systems is standard on all SCHMIDT® monitored presses. And with the SCHMIDT® PRC OPC software available on these models, data exchange will now become the automation standard.
