Specs
From 3,370 lbs. to 22,480 lbs.
Throat depth from 5.16″ to 6.30″
Working height from 2.36″ to 23.62″

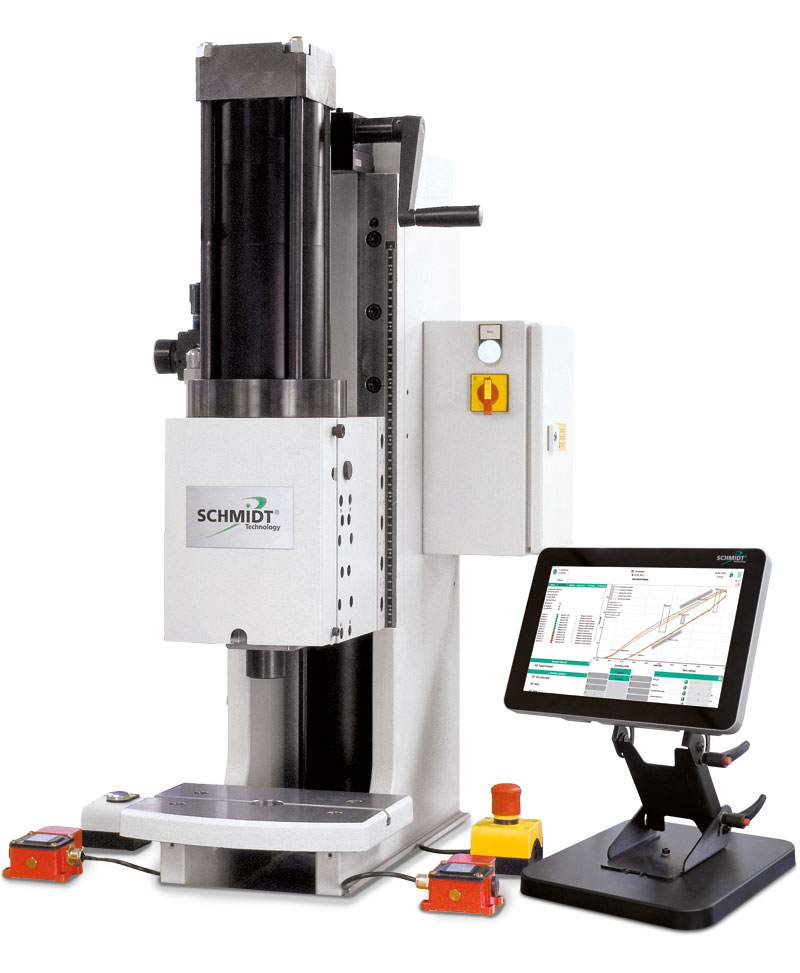

Hydro-Pneumatic Press with Monitoring
SCHMIDT Hydro Pneumatic Presses with force/stroke monitoring are offered as complete system with control unit
SCHMIDT Press Control 700. These systems are characterized by sensors and signal amplification integrated in the press head. These signals are evaluated in real time.
Applications
- Assembling, riveting, staking, swaging, crimping, marking, numbering, deforming, stamping, dismantling
- High force over a short distance
Resources
Technical Info
Download SpecificationsFeatures
- Direct forces are measured due to the force sensor integrated in the ram. Insensitive against side forces.
- Signal readings are not affected by outside interference.
- A measuring data amplification integrated in the press head provides short transmission paths of unamplified signals.
- Precision guide rails for precise working. Bilaterally adjustable, play-free gibs, precision machined bore for tool location. No die-set required.
