Manual Press with Monitoring

Specs

From 90 lbs. to 2,700 lbs.
Throat depth from 5.13″ to 9.76″
Working height from 1.97″ to 23.62″

Applications

Assembling, riveting, staking, swaging, crimping, marking, numbering, deforming, stamping, dismantling

Resources

Features

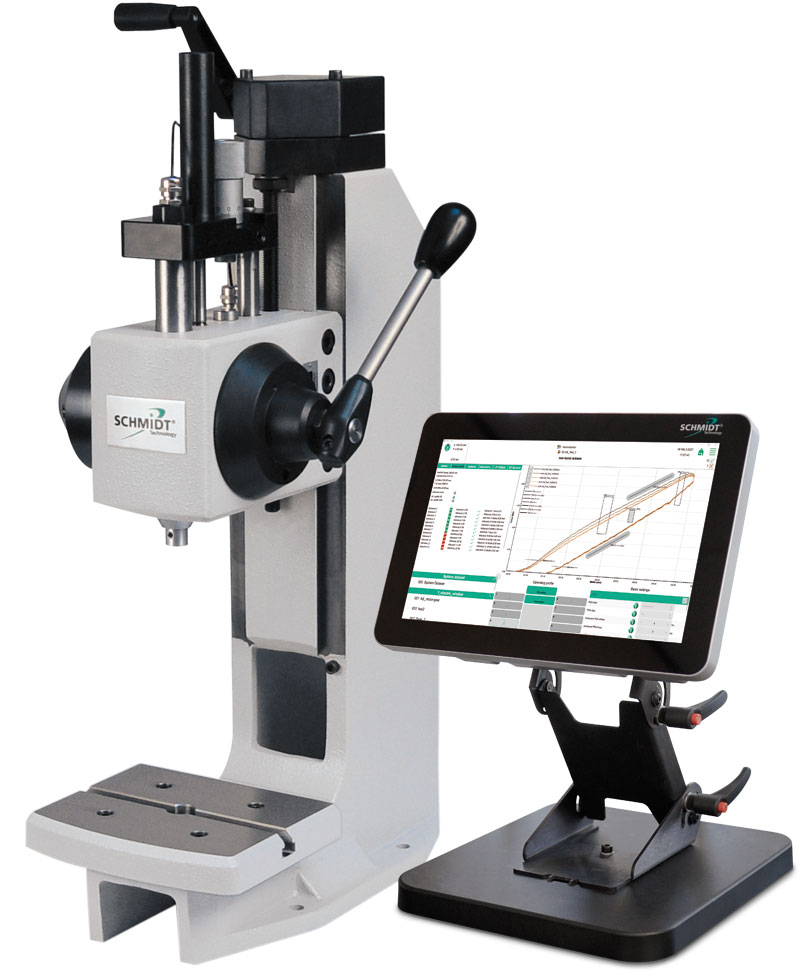

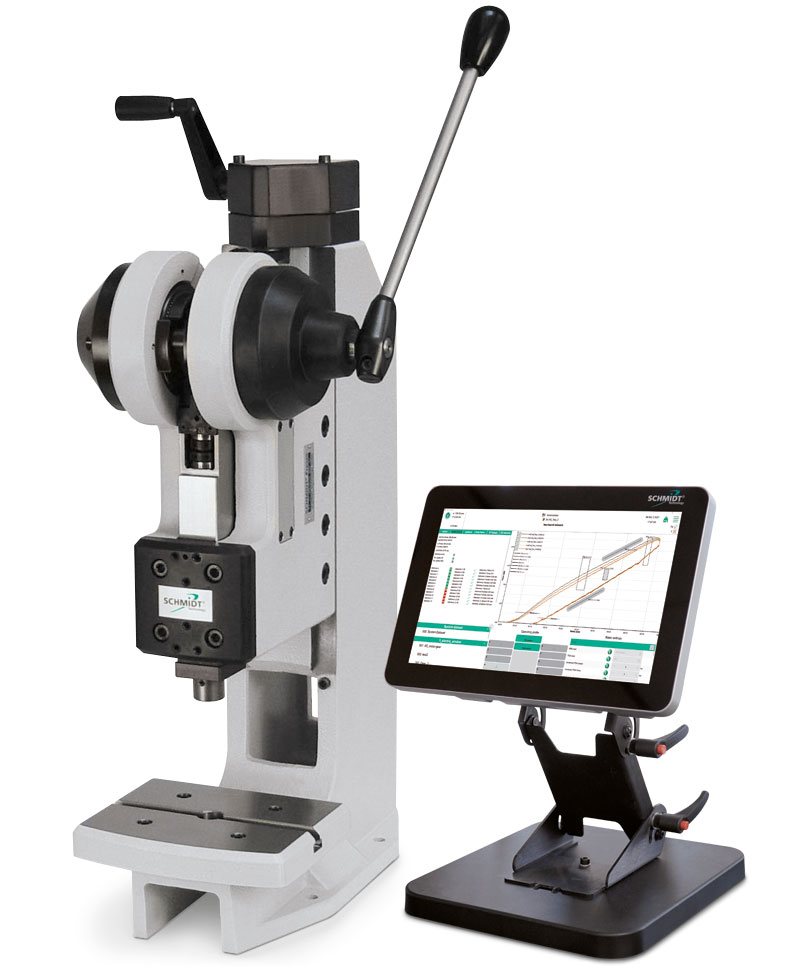

ManualPress 300 Series included with the control unit SCHMIDT® Press Control 700
Force & stroke monitoring of the entire pressing operation
– Allows for extensive error analysis
Process reliability:
– Utilizing the interface of external sensors and actuators, the press is not unlocked until the part is completely and correctly assembled.
– Locking of the press with failed parts (SCHMIDT® Manual Press 307)
– Separation of the power flow (SCHMIDT® Manual Press 305)
-Secure separation and acknowledgement of Pass and Fail (“Poke Yoke”)
Freely programmable positioning, stopping and braking in forward and return stroke
– Process intervention
– Quality monitoring
– Reduction of error costs and elimination of errors
Short changeover times due to preselection of stored working profiles
Integrated software embedding of program modules SCHMIDT® ControlTool and SPC Software via USB connection to PC for
– Production data management
– Process monitoring
– Process visualization
– Quality evaluation
– Static process control
Linear force
Precise adjustment of the press depth via micrometer fine adjustment
Maintenance-free, honed guides and precision-ground rams provide a long service life and non-rotational alignment
Optimum fit and form closure due to dovetail guide on the press head
Quick set-up
– Exact alignment of the ram to the table of 0.002″
– Height adjustment using a crank
– Precision bores in ram and column base platen
