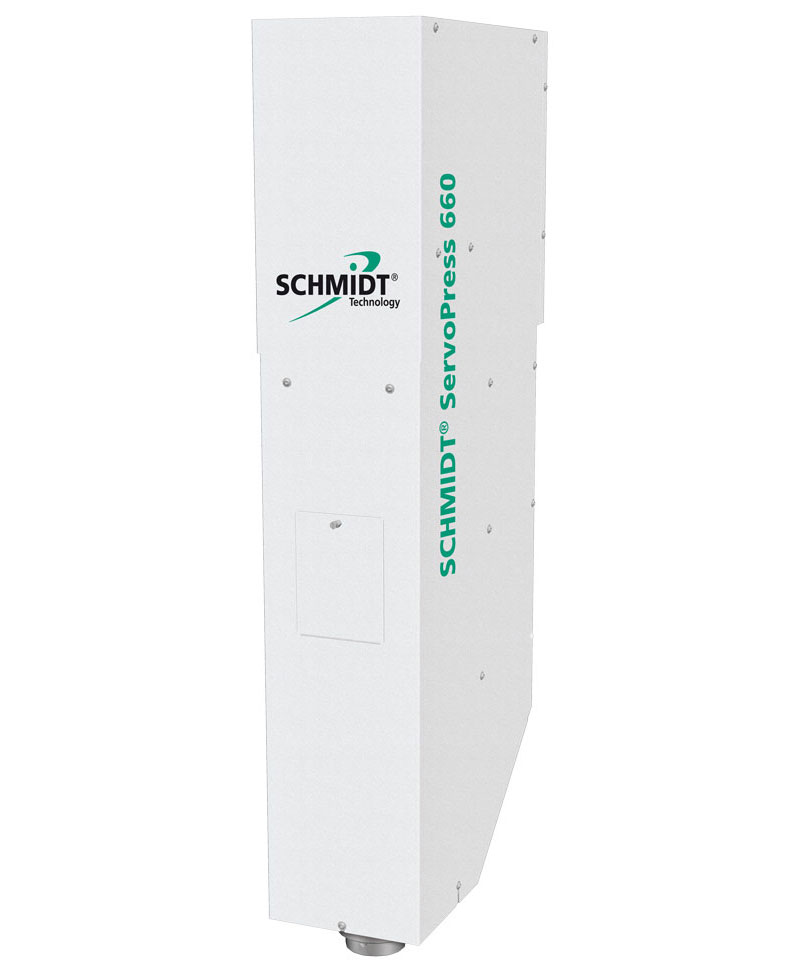

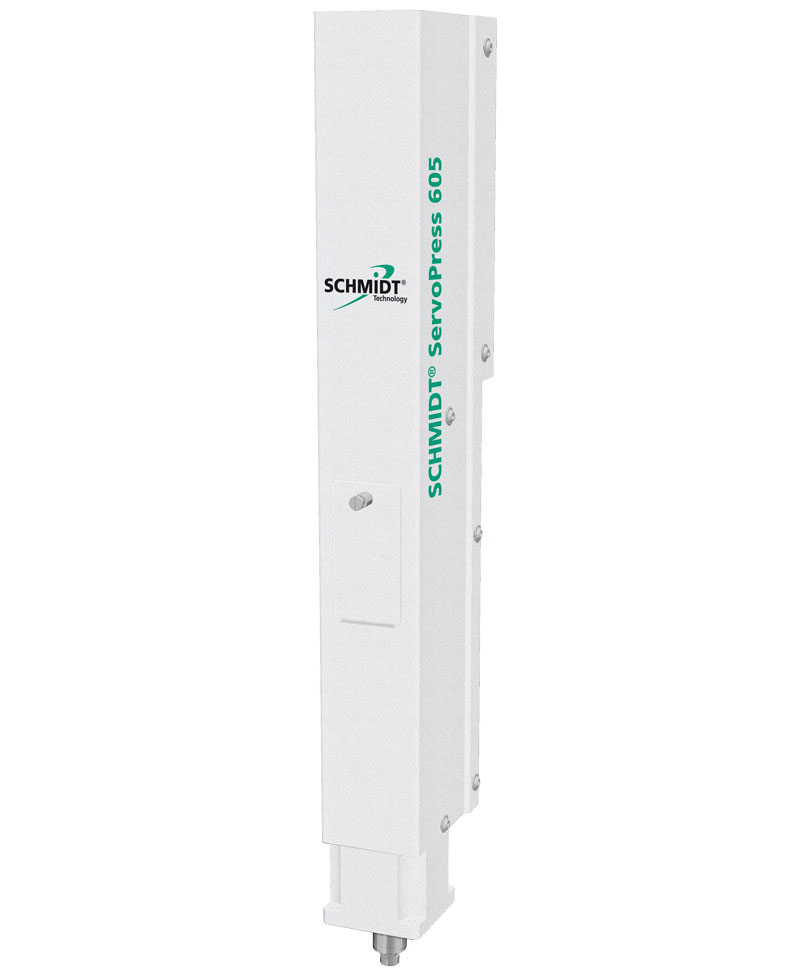

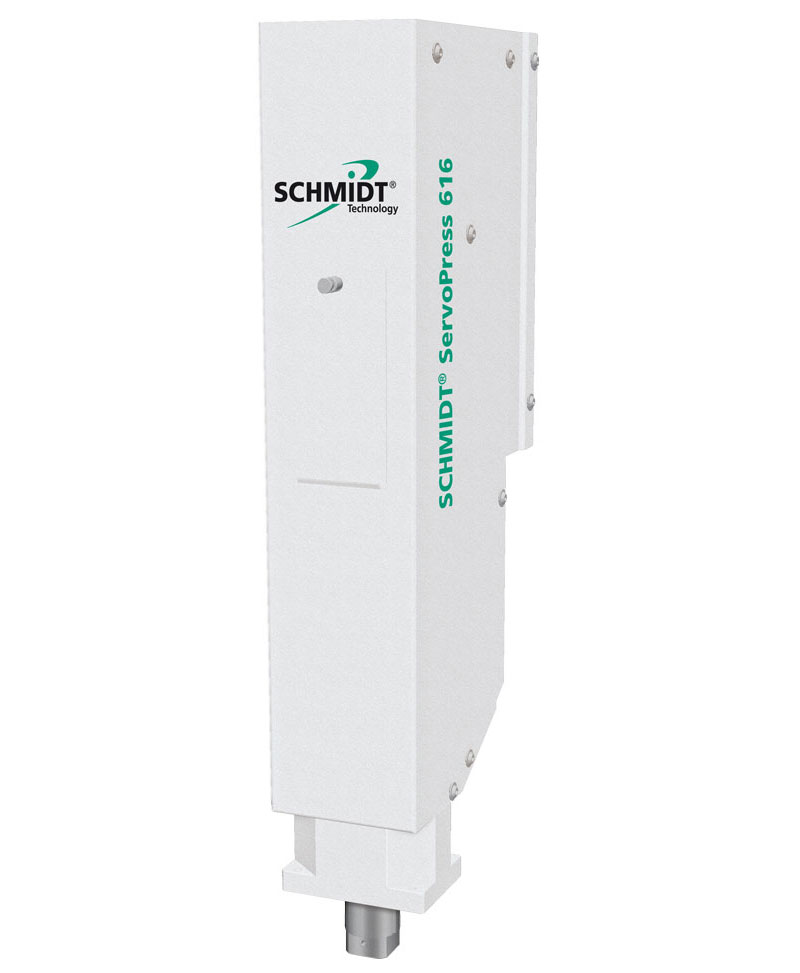

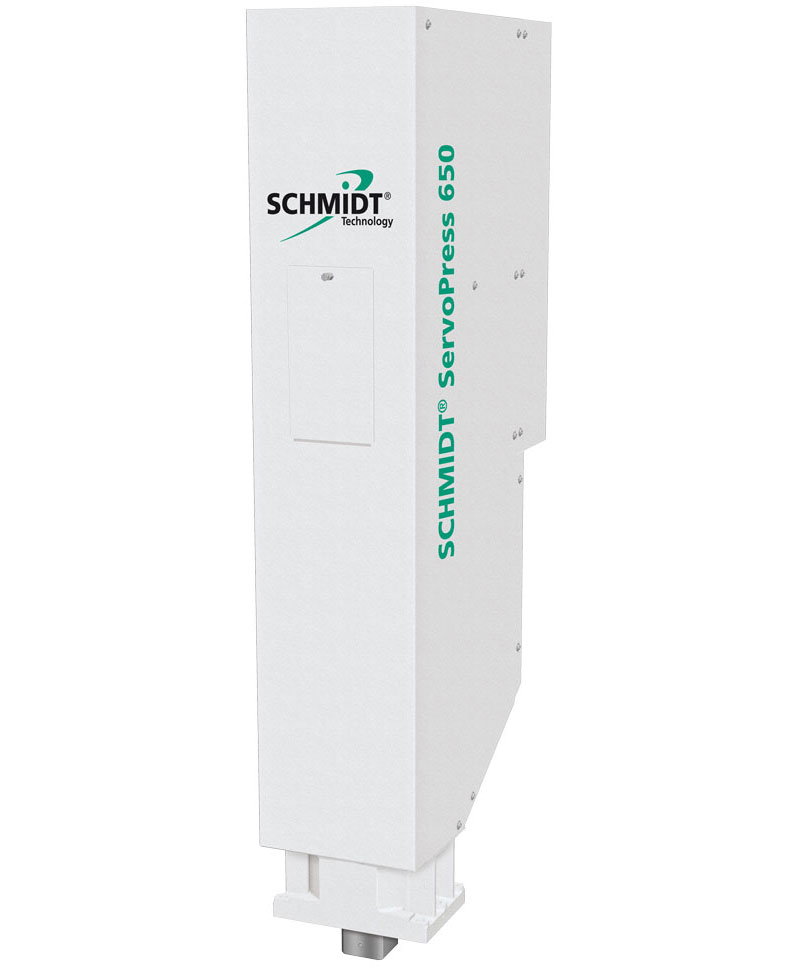

An economic and high quality assembly is the key to the success of your product. The aim is to join together precise assemblies from low-cost individual components with different tolerances. Electrically driven spindle presses, servo presses, are ideal for such tasks. SCHMIDT® Servo Press systems offer an integrated solution via either the multi-axis SCHMIDT® Press Control 7000 or the single axis SCHMIDT® Press Control 700 control units used with the SCHMIDT® Servo Press modules. They meet the most complex requirements, as stand- alone machines or in automatic production lines
Specs
From ounces up to 35,970 lbs.
Throat depth from 5.12″ to 6.30″
Working height from 5.91″ to 19.68″
Superior process control behavior compared to conventional NC axes
– quick
– repeatable
– can be optimized for your application
Intelligent compensation
– due to calculation of individual tolerances of the parts
– of system elasticity (dynamic bending compensation)
Free positioning with changing process forces
– without fixed tool stop
– accuracy in the 1/100 mm / 0.0004″ range
Real time evaluation
– true closed-loop control, distance and force
– direct reaction to process and quality data
– no delay caused by low process data transfer
– immediate availability of SPC data
Precise and robust mechanical construction
System is configured for operation
– standard travel profiles only require the entry of position and speed
– system automatically parameterizes itself
