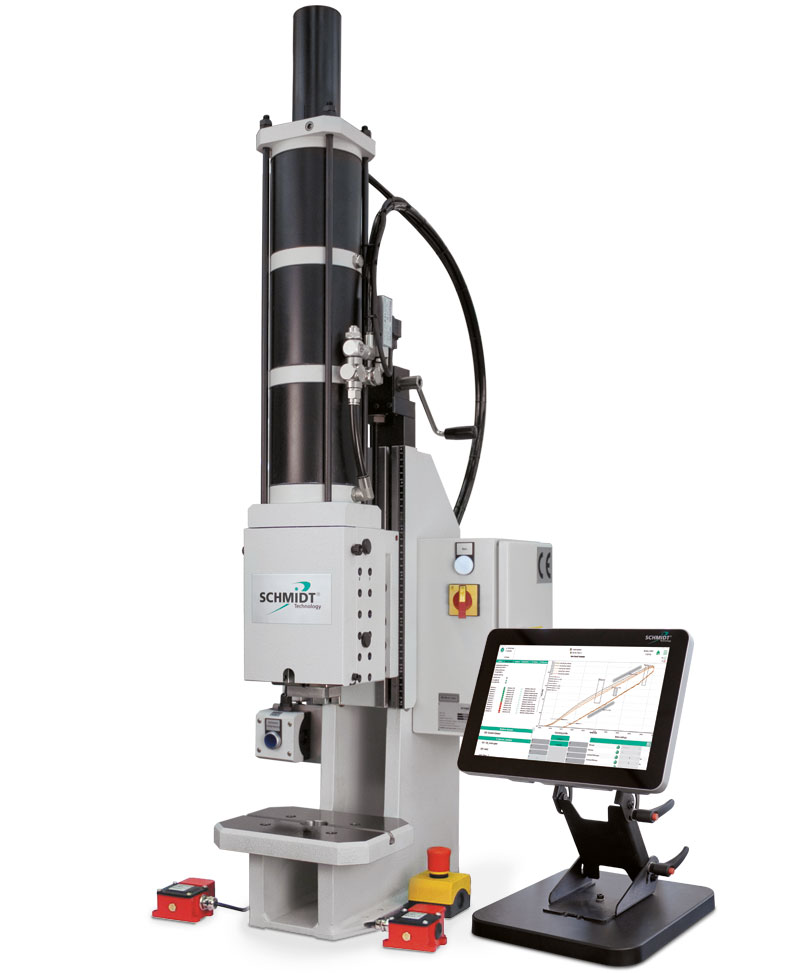

The SCHMIDT® Pneumatic Press range consists of modular units suitable for transforming, joining and assembling operations optimally within the pressing capacities of 350 lbs. to 13,490 lbs.
With the addition of the SCHMIDT® Press Control 700 and the optional process monitoring, these presses become EC type-approved, CE-conformed workstations and can be used in either single cycle mode or automatic mode.
The application determines the selection of the press system. Consideration is given to the flexible design of the assembly location taking into account the ergonomic and safety aspects. These characteristics are achieved by means of a finely adjusted, modular type product range.
The efficiency and increased process reliability of these press systems have been proven many times, in single applications and semi-automated assembly systems, and have been integrated into automated production lines.
- Optimally adapted to individual requirements due to its modular design
- Process optimization by means of adjustable parameters (stroke, force, speed)
- Easy adaptation to different tool and part heights because of a simple stroke and height adjustment
- Easy and exact positioning of tools due to precision bore and T-slot with set screw in the ground press table
- Additional safety measures when using heavy tools due to the optional device for retention of ram in home position
- Optional end position request via cylinder switch as signal transmitter for peripheral processes
- Low noise level (< 75 dBA)
- Double-acting, wear-resistant cylinders with low air consumption for the return stroke. The return stroke is carried out via one cylinder chamber by default.
- High flexibility due to short changeover time
- Long service life and high precision due to wear-resistant Teflon coated bushings at top & bottom of cylinder
- Precision ground ram
- Precision double ram Teflon guides
