Specs
From 350 lbs. to 13,490 lbs.
Throat depth from 3.6″ to 5.51″
Working height from 3.1″ to 23.62″

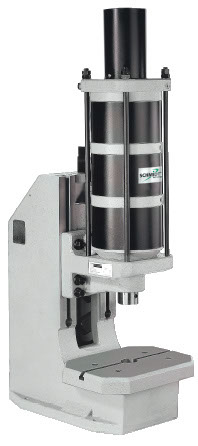

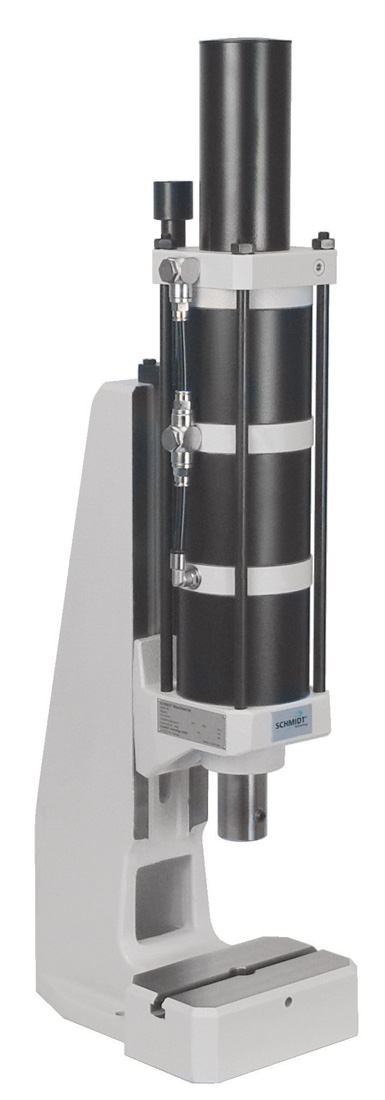

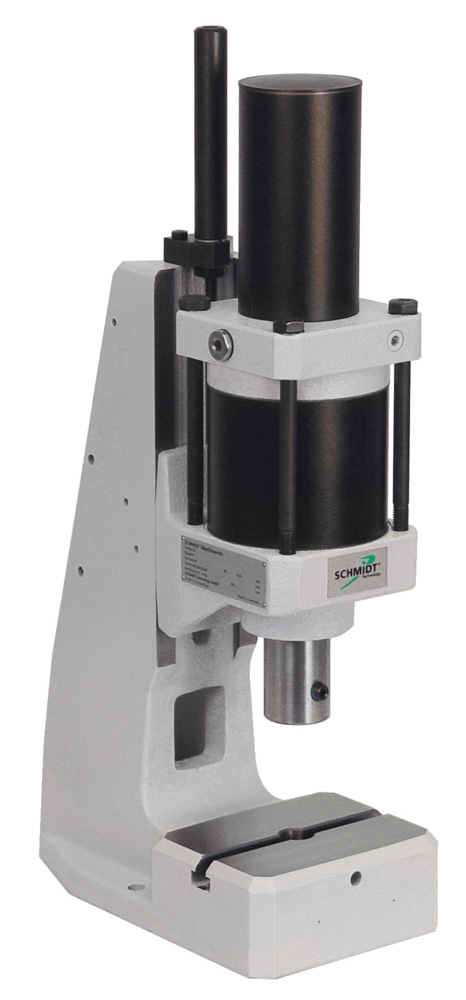

Direct Acting Air Press
These air presses produce a constant force throughout the entire stroke
Applications
Assembling, pressing of pins and bushings, forming, sizing
Constant force over entire stroke
Resources
Technical Info
Download SpecificationsFeatures
- Maintenance-free cylinder unit specially developed for the assembly technology; with flow control for speed control of the entire stroke
- Press head unit
The working height can be rapidly & accurately adjusted due to the height adjustment’s ease of use. Can be used without the frame as processing station in automated installations. - Adjustable ram position in BDC by means of precision lower stop (1 division line = 0.05 mm / .002″) on scale
- Ram with precision bore for tool holding and built-in adjustable stop
- Round anti-rotational ram
- Frame with precision machined press head guide rails
- Fixture mounting plate with precision T-slot and bore for tool location
- T-slot with locking set screw in press table
