Rack and Pinion Press

Do you need a long stroke and a constant force for assembly processes? Then, SCHMIDT Rack and Pinion manual presses are just the right choice.

Specs

From 360 lbs. to 560 lbs.
Throat depth from 2.56″ to 7.87″
Working height from 2.36″ to 23.62″

Applications

  • Insertion of bushings, axles and bearings into housings or deep bores
  • Assembly of components with large installation heights
  • Constant force over entire stroke
  • Sensitive “fingertip” work

Resources

Technical Info

Download Specifications

Features

  • Long stroke
  • Linear force
  • Precise adjustment of the press depth via hardened lower stop
  • Honed bores and ground rams provide a long service life and a precise guidance

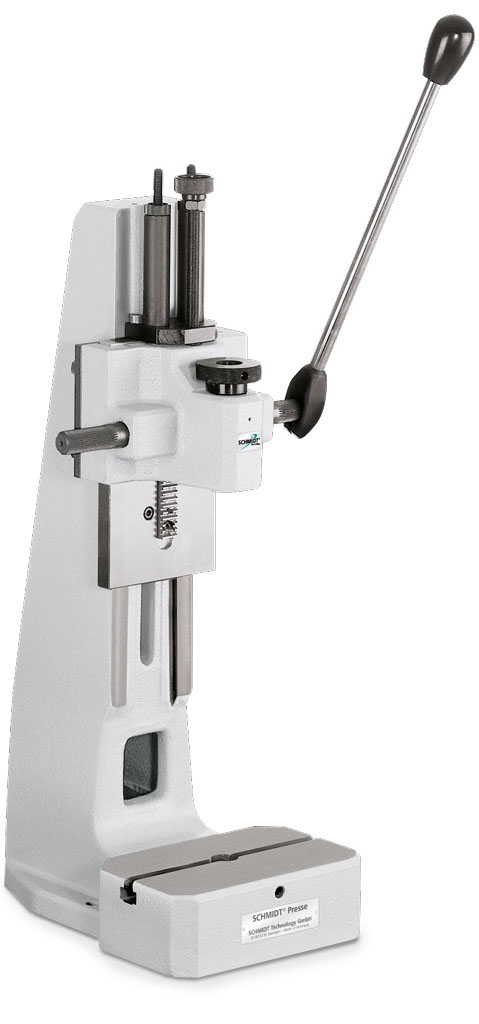

No. 1 or 2

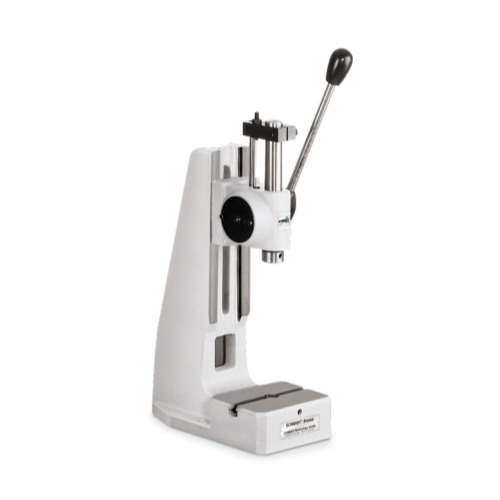

No. 3 or 6

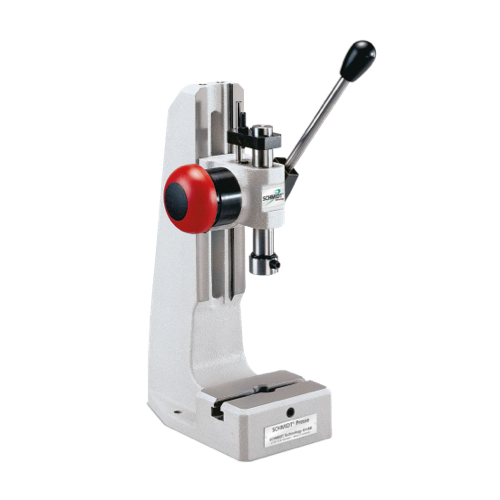

No. 5

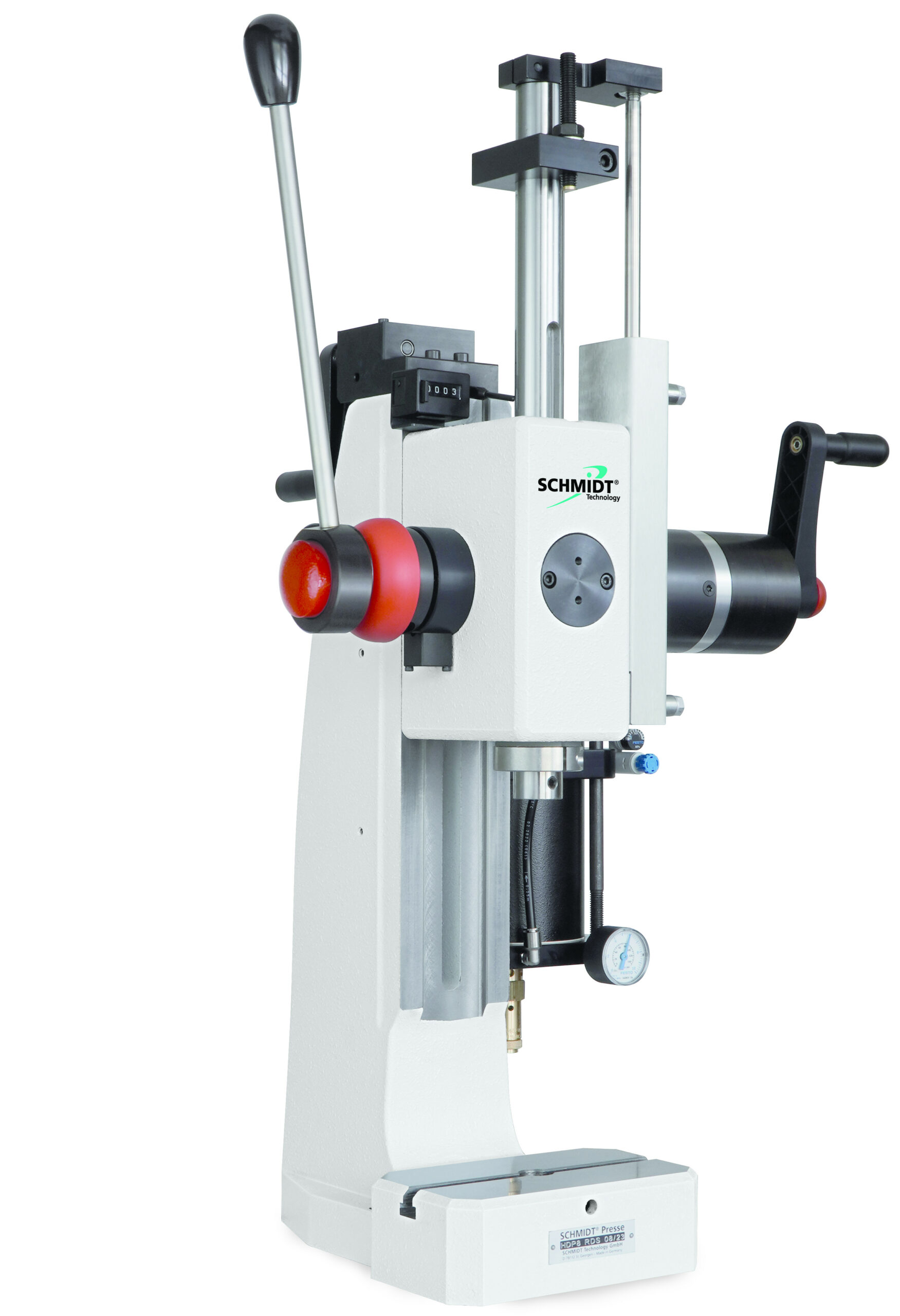

No. 8
